What is a Welding Symbol in Welding?
Welding is a process of joining two materials, usually metals or thermoplastics, by causing coalescence. This is often done by melting the workpieces and adding a filler material to form a pool of molten material (the weld pool) that cools to form a joint with properties different from those of the surrounding material. Welding is distinct from lower-temperature metal-joining techniques such as brazing and soldering, which do not melt the base metal.
There are many different types of welding processes, including:
- arc welding,
- gas tungsten arc welding,
- oxy-fuel welding,
- and spot welding.
The most common type of welding is arc welding, which uses an electric arc to create heat that melts the base metal and the filler material. Arc welding can be done with either a continuous or alternating current.

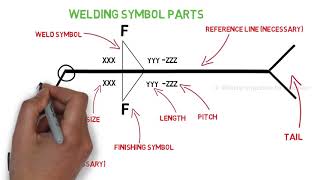

There are three main elements to a welding symbol:
- the reference line,
- the arrow,
- and the tail.
The reference line is a straight line that indicates the starting point of the weld. The arrow points in the direction of the welding action, and the tail contains all of the necessary information about the weld, such as type, size, and any special instructions.
Welding symbols are an essential part of welding documentation, as they provide a clear and concise way to communicate information about a weld. When used correctly, they can help to ensure that a weld is made correctly and safely.
Why are welding symbols used?
Welding symbols are used to provide guidance for welding. They are graphical representations of welds that show the type of weld, the size and shape of the weld, and any other pertinent information.
What is the difference between the welding symbol and the weld symbol?
The welding symbol is a graphical representation of a weld, while the weld symbol is an abbreviation that provides information about the weld.
Welding symbols on drawings
They provide essential information that cannot be conveyed any other way. They are easy to interpret and can be understood by anyone who is familiar with them.
