What is a Reduced Section Tension Test in Welding?

The reduced section tension test is a type of welding test in which a transverse section of the weld is located in the center of the reduced section of the specimen. This test is used to determine the tensile strength and ductility of the welded joint. The results of this test are used to evaluate the quality of the weld and to determine the suitability of the weld for its intended purpose.

This test is generally used for welds made with high-strength steel. The reduced section tension test is sometimes called the notch tensile test or the fracture toughness test. This test is specified in many welding codes and standards, such as the American Welding Society (AWS) D1.1 Structural Welding Code.

This test is used to qualify a welding procedure for use with a particular metal and to ensure that the procedure produces a sound weld. The reduced section tension test is also used to troubleshoot welding problems and to determine the root cause of weld failures.

What is the purpose of a tensile test?

A tensile test is a type of mechanical testing that is used to determine the tensile strength and ductility of a material.

How do you test the tensile strength of a weld?

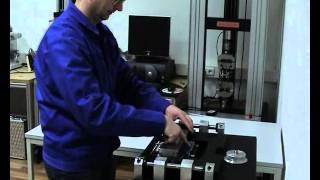

The tensile strength of a weld can be tested by performing a reduced section tension test. In this test, a specimen is welded in the form of a rectangular bar. The weld is made in the center of the bar, and the ends of the bar are machined to create a reduced section. The specimen is then placed in a testing machine and pulled until it fractures. The load at fracture is recorded and used to calculate the tensile strength of the weld.

What is the purpose of the transverse tensile test?

The transverse tensile test is a type of mechanical testing that is used to determine the tensile strength and ductility of a material in the transverse direction.

What is a fracture toughness test?

A fracture toughness test is a type of mechanical testing that is used to determine the fracture toughness of a material.

Ductility in welding

Ductility is a measure of a material’s ability to deform under load. It is an important consideration in welding, as it affects the overall strength and integrity of the weld. Ductility can be affected by several factors, such as:

the welding process,
electrode type,
welding speed,
and heat input.

The welding procedure and operator also play a role in the quality of the weld. The results of a reduced section tension test can be used to determine the ductility of a weld.
