What is an Electrode Holder in Welding?
An electrode holder also called a welding electrode holder, is a device that mechanically holds and conducts current to an electrode during welding or cutting. It is an important part of the welding process, as it helps ensure a consistent electrical connection between the electrode and the workpiece.
What are the different types of electrode holders?
There are several different types of electrode holders available on the market, each designed for specific welding applications.
- The most common type is the stinger type, which is used for manual welding. This type of holder has a clip that grips the electrode, as well as a handle that is used to hold the electrode in place.
- Another popular type of electrode holder is the tong type. This holder features two jaws that grip the electrode, as well as a trigger that is used to release the electrode when it is not needed. Tong type holders are often used in automated welding systems, as they provide a more precise and consistent electrical connection than stinger type holders.
No matter what type of electrode holder you use, it is important to make sure that it is compatible with the welding machine you are using. Incompatible electrode holders can cause welding problems, such as arc blow, that can damage both the electrode and the workpiece.
What is the common name for an electrode holder?
An electrode holder is also commonly known as a welding electrode holder.
What is the electrode holder made of?
The electrode holder is typically made of metal, such as copper or aluminum.
What is the function of the electrode holder?
The electrode holder’s primary function is to hold and conduct current to an electrode during welding or cutting. It also helps ensure a consistent electrical connection between the electrode and the workpiece.
How do you attach an electrode to a holder?
The electrode is typically attached to the holder using a clip or a set of jaws. Once the electrode is in place, it is held in place by a trigger or a handle.
How to specify the size of an electrode holder?
Electrode holders are typically sized by the diameter of the electrode they can accommodate. For example, a 3/8-inch electrode holder can hold an electrode with a diameter of 3/8 inches.
Electrode holder price
The price of an electrode holder varies depending on the size, type, and material. Smaller electrode holders made of simple materials may cost as little as $5, while larger, more complex electrode holders can cost more than $100.
Parts of the electrode holder
The parts of an electrode holder include:
- the body,
- jaws,
- clip,
- trigger,
- and handle.
The body is the main part of the holder that holds all the other parts together. The jaws are used to grip the electrode in place. The clip is used to attach the electrode to the holder. The trigger is used to release the electrode when it is not needed. The handle is used to hold the electrode in place.
Related Links
Electrode Holders – Stick Welding And Accessories – Grainger Industrial Supply
Electrode Holders | The Harris Products Group
Reboot Welding Stick Electrode Holder 300AMP Copper Heavy Duty Jaw Holding Plier Electrode Clamp of Welding Machine ARC Welder American Design – – Amazon.com
Stick Welding Electrode Holders | Arc-Zone
400 Amp Welding Electrode Holder
Related Videos

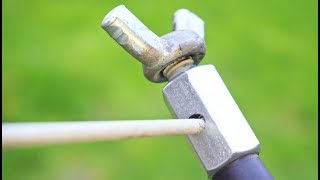

"Clamp" VS "Screw" Stick Electrode Holder Showdown
Design Stick ideal for Any Welder

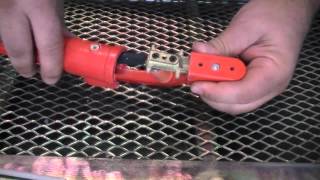

Everlast Tutorial: Selecting and Replacing the Stick Electrode Holder.

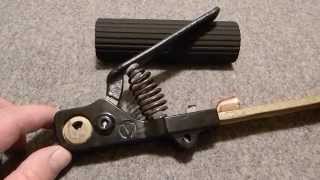

Stinger V insulated electrode holder; first impressions and initial review

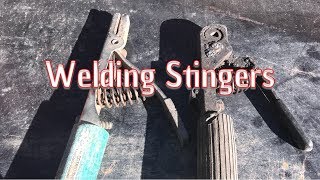

Welding Stinger. T-300 vs V-Stinger
-
