What is All-Weld-Metal Test Specimen in Welding?
An all-weld-metal test specimen is a test specimen that consists entirely of weld metal. This type of specimen is used to determine the properties of the weld metal, such as its tensile strength, ductility, and hardness. The all-weld-metal test specimen is also used to assess the quality of the weld metal, such as:
- its porosity,
- inclusion content,
- and macrostructure.
What is the test setup for weld Specimen?
An all-weld-metal test specimen is typically produced by welding a small coupon onto the weld joint. The coupon is then machined to the desired dimensions and shape. The all-weld-metal test specimen can also be produced by welding a small piece of metal onto the weld joint and then machining it to the desired dimensions and shape.
What are the two types of testing used to test a weld?
There are two types of testing that are used to test a weld:
- Destructive testing is a type of testing that involves breaking the weld joint in order to assess its quality. Destructive testing is typically used to determine the tensile strength, yield strength, elongation, and hardness of the weld metal.
- Non-destructive testing is a type of testing that does not involve breaking the weld joint. Non-destructive testing is used to assess the quality of the weld metal, such as its porosity, inclusion content, and macrostructure.
What are the three main tests that are used to determine the mechanical properties of weld metal?
The 3 main tests that are used to determine the mechanical properties of weld metal are:
- Tensile test,
- Yield strength test,
- Hardness test.
What is the most common weld test?

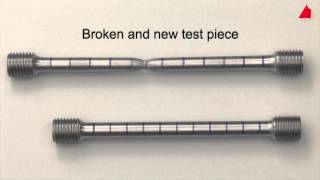

The most common weld test is the tensile test. The tensile test is used to determine the tensile strength, yield strength, and elongation of the weld metal. The tensile test is typically conducted on an all-weld-metal test specimen.
Bend test welding
It is used to determine the ductility of the weld metal. The bend test is typically conducted on an all-weld-metal test specimen. The hardness test is used to determine the hardness of the weld metal. The hardness test is typically conducted on an all-weld-metal test specimen.
